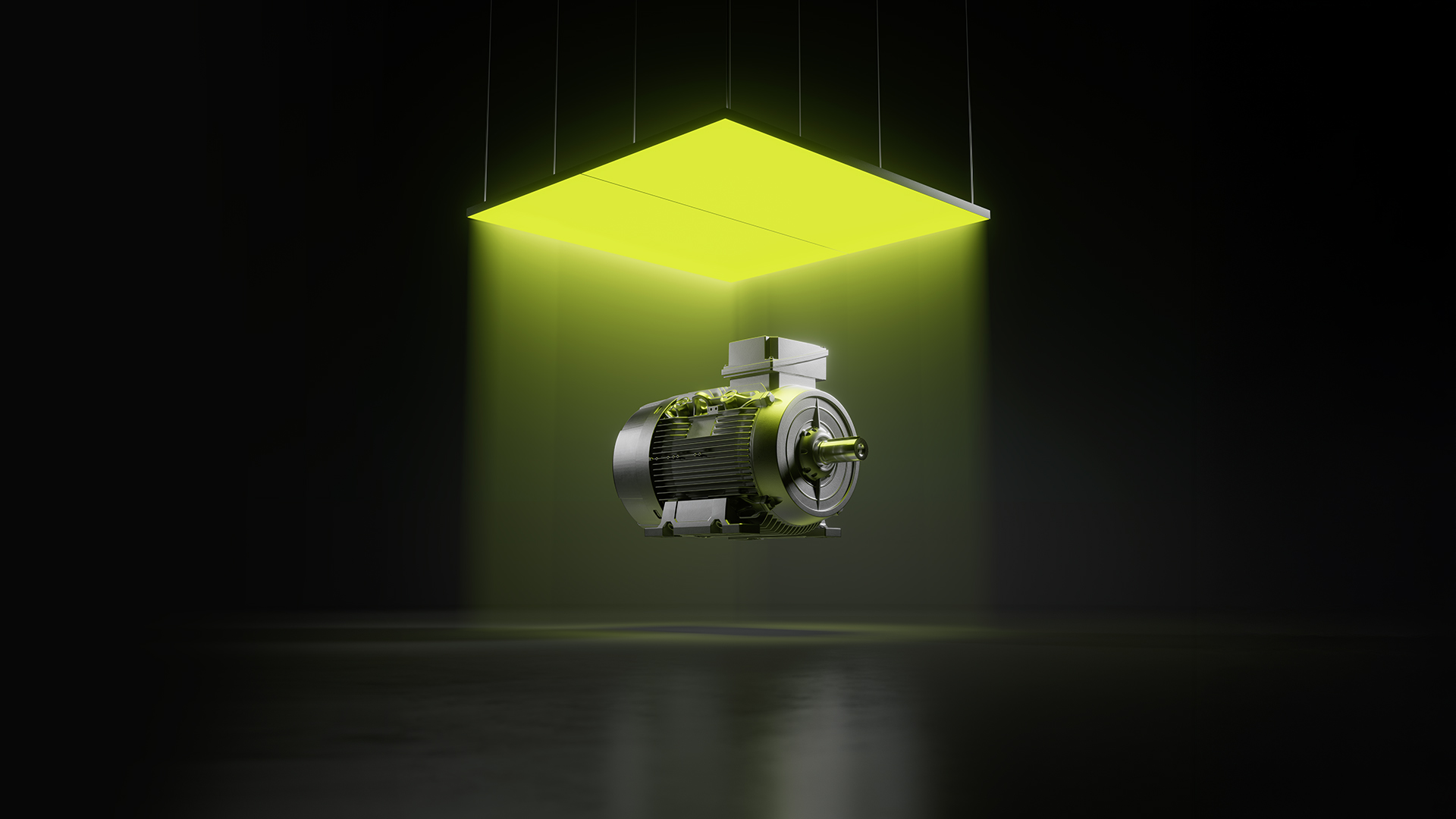

General purpose motors with aluminum housing, protection up to IP66 and painting system up to C4 are suitable for a wide range of standard drive tasks in industrial environments and humid atmospheres. The design and architecture of the motors ensure maximum flexibility and minimum installation effort. Due to their particularly low weight, they are predestined for applications in pumps, fans and compressors.
In addition to induction (asynchronous) motors for direct-on-line and converter operation, two different synchronous motor technologies are available. These need to be used always with a frequency converter (VSD).
The proven induction motors from the GP Motors are optimized for line operation, and are available with efficiency classes up to IE4. All motors have the same power-shaft height assignment. As a consequence, there are no shaft height differences, making it easy to service or replace motors across all efficiency classes. These grid-optimized motors can also be operated with converters.
The variable-speed-drive motors are based on the platform of the General Purpose Motors. The design corresponds to the line motors – the mechanical parts are identical. However, instead of the squirrel cage induction rotor, they utilize one of the two available synchronous technologies. Together with an appropriate frequency converter they provide an outstanding performance and reach an extremely high energy efficiency (IE4 or IE5), also at partial loads. In addition, a large number of the variations available for the line motors (types of construction, motor protection, terminal box position, and options) are also available for the VSD motors.
| Feature | Aluminum (IE3) | Cast iron (IE3) | Cast iron (IE4) |
|---|---|---|---|
| Housing material | Aluminum | Cast iron | Cast iron |
| Frame size | 80 – 160 | 80 – 280¹ | 280² – 355 |
| Rated power output | 0.55 – 18.5 kW | 0.55 – 55 kW | 75 – 315 kW |
| Poles | 2, 4, 6 | 2, 4, 6 | 2, 4, 6 |
| Rated voltage / frequency | 230 V∆ / 400 VY, 400 V∆ / 690 VY, 50 Hz | 400 V∆ / 690 VY, 50 Hz | |
| Efficiency class | IE3 | IE4 | |
| Insulation | 155(F)/130(B) | 155(F)/130(B) | 155(F)/130(B) |
| Mounting type | B3, B5, V1, B35, B14, B34³ | B3, B5, V1, B35, B14, B34³ | B3, B5, V1, B35, B14, B34³ |
| Protection degree | IP55 | IP55 | IP55 |
| Cooling method | IC411 | IC411 | IC411 |
| Art. No. (1st 7 positions) | 1LE0 323 | 1LE0 043 | 1LE8 044 |
| 1) Frame size 280 only with 6 poles 2) Frame size 280 only with 2 and 4 poles 3) B14 and B34 only up to frame size 160 See the D81.6 catalog for more information including available options: innomotics.com/109972330 | |||
General Purpose Motors are perfectly suited for use in standard applications such as pumps, fans, compressors and industries HVAC, W&WW, Fiber, Food&Beverage.
